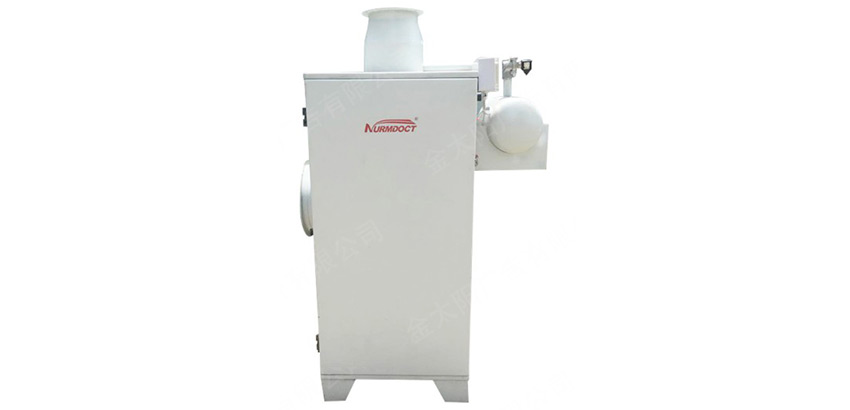

DPF32
Product parameters
| Product Name: | Dust Collector | Filter type: | Filter cartridge |
| Body material: | Steel plate | Scope of application: | 1500M3/H--2100M3/H |
| Applicable object: | Dust | Effective filtration area(m2): | 24 |
| Dimensions(MM): | 500*800*1500 |
| Model | DPF-32 | Inlet dust concentration（g/m3) | ＜200 |
| Handing air volume（m3·h) | 1500-2100 | Export dust concentration（mg/m3) | ≤50 |
| Filtration area(m2) | 24 | Gas source pressure(MPa) | 0.4-0.6 |
| Filtering wind speed(m/min) | 1.0-1.5 | Air consumption for cleaning(m3/min) | 0.1 |
| Filtering wind speed | 32 | Understand negative pressure | 5000 |
| Inlet gas temperature | ≤120 | Number of pulse valves | 4 |
| Equipmentresistance | ≤1200 | Fan motor power | 1.5 |
